Galfan coated Defensive bastion for flood fighting and fortifications building
Product Description:

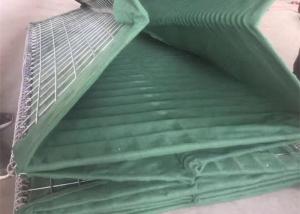

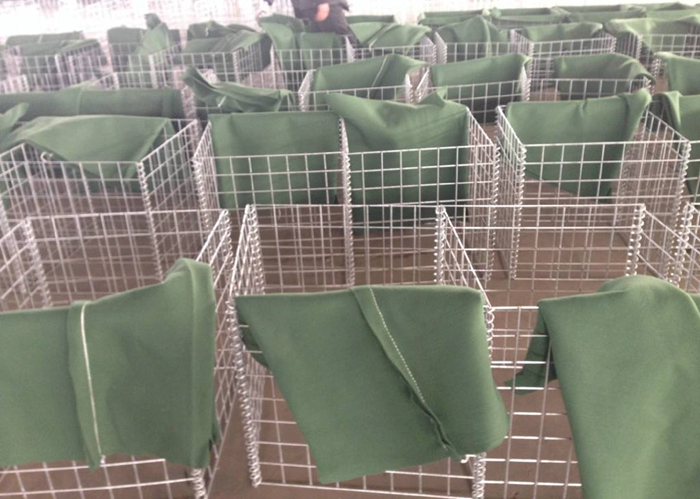

Defensive barrier is gabion-like. It is a combination of welded wire mesh frame outside and non-woven geotextile liner inside. Sand, soil, gravel and blinding are frequently used as filling because of geotextile liner.
Gabion bastions are mainly used in itary and flood control for its modular structure and quick setup. For itary, a gabion with 24 inches thickness can stop rifle bullets, shell fragments and other shrapnel. While for flood protection, gabion can be assembled soonest and come into use.
Advantages of Defensive barriers:
Modular structure are more effective than sandbags.
Quick and easy setup.
Filling such as soil, sand and gravels are easy to get.
Galvanized frame will not rust in damp environment.
Custom specs are provided on special requirement.
Cost effective and durability.
| Bastion barrier specification |
| Code | Height | Width | Length | Cells | Styles |
| 1 | 2' | 2' | 4' | 2 | Standard / Recoverable |
| 2 | 2' | 2' | 10' | 5 | Standard / Recoverable |
| 3 | 3'3" | 2'6" | 30' | 9 | Standard / Recoverable |
| 4 | 3'3" | 3'3" | 32'9" | 10 | Standard / Recoverable |
| 5 | 3'3" | 5' | 32'9" | 6 | Standard / Recoverable |
| 6 | 4' | 1' | 4' | 2 | Standard / Recoverable |
| 7 | 4'6" | 3'6" | 32'9" | 9 | Standard / Recoverable |
| 8 | 4'6" | 4' | 32'9" | 9 | Standard / Recoverable |
| 9 | 5'6" | 2' | 10' | 5 | Standard / Recoverable |
| 10 | 7' | 3'6" | 108' | 30 | Standard / Recoverable |
| 11 | 7'3" | 5' | 100' | 20 | Standard / Recoverable |
| 12 | 7'3" | 7' | 91' | 15 | Standard / Recoverable |
| 13 | 9' | 3'6" | 10'5" | 6 | Standard |
gabion specifications:
Material: galvanized wire, galfan coated wire.
Wire diameter: 4 mm to 5 mm.
Joining pins diameter: 4 mm.
Mesh opening: 76.2 × 76.2 mm, 80 × 80 mm,100 × 100 mm.
Geotextile: 2 mm heavy duty non-woven polypropylene.
Overall size: 2.21 × 2.13 m, 1.37 × 1.06 m, 0.61 × 0.61 m, also can be customized.
